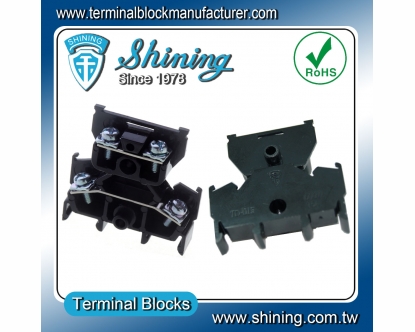

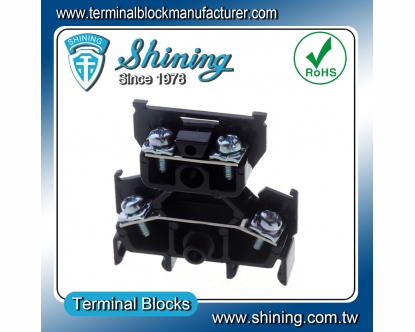

TD-015 Rail Mounted 15A Double Deck Terminal Block

  • Inquiry

  • Download

    • TD-015 Rail Mounted 15A Double Deck Terminal Block







    Rated Voltage: 600V

    Rated Current: 15A

    Dimension: 40.5 x 40.0 x 40.0 mm (L x W x H)

    Install Type: 35mm Din Rail Mounted (TA-001A / TA-001S) / 25mm Din Rail (TS-001) / Panel Mounted

    Certificate: RoHS Approval

    Pole: Any Poles is available. Please see the Specification Table below:



Description

TD-015 Rail Mounted 15A Double Deck Terminal Block



Gerneral Product Information
Item number: TD-015
Rating: 600V, 15A
Size: 40.5*40.0*40.0mm (L*W*H)
Wire Size: 2.0 mm2 / AWG 14
Screw Size: M3



Dimensions [mm]
Item No. Poles (P) Length (L) Width (W) Height (H)
TD-015-01P 1 8.5*1+32.0=40.5 40.0 mm 40.0 mm
TD-015-02P 2 8.5*2+32.0=49.0
TD-015-03P 3 8.5*3+32.0=57.5
TD-015-04P 4 8.5*4+32.0=66.0
TD-015-05P 5 8.5*5+32.0=74.5
TD-015-nP n 8.5*n+32.0
32 mm = Length of an End Plate X 2 PCS

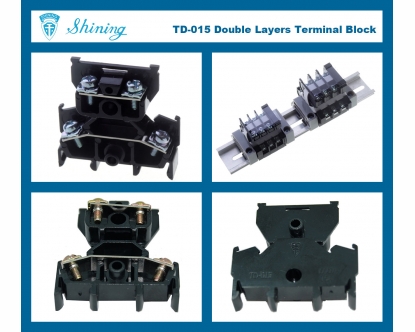

Product Photos

TD-015 Rail Mounted 15A Double Deck Terminal Block



Specification Sheet
Item No. TD-015 TD-025 TD Series Product Picture
Specifications



















Total Length (L) [mm]
8.5*n+32.0
10.0*n+32.0
Ref. Length (L1) [mm]
8.5*n+16.0
10.0*n+18.0
Gap (A) [mm]
7.0
8.0
Pitch (B) [mm]
8.5
10.0
Ref. (D)
4.5
4.5
Width (W) [mm]
40.0
50.0
Ref. Width (W0) [mm]
28
32
Ref. Width (W1) [mm]
20
20
Height (H) [mm]
40.0
50.0
Screw (C)
M3
M4
Rated Torque [N-m]
0.5
1.2
Rated Torque [in-lb]
4.4
10.6
Poles/Positions (P)
Any  (n: the Number of Poles)
Electrical Specification

Rated Voltage  [V] 600V
Rated Current [A]
15A
25A
Wire Size  [mm2]
2.0 mm2
2.0 mm2
Wire Size  [AWG]
AWG 14
AWG 10
Materials

Insulator Materials
PC
Color
Black  (White, Blue, Red, Brown, ...)
Flame Retarded Grade
UL94V-2  (UL94V-0)
Temperature [0C]
-400C~+1100C (Max: +2200C)
Conductor
Brass, Nickel Plated
(Copper, Tin Plated)
Accessories & Parts Paper Marker Strips & Transparent Cover come with products for free. Others are optional.
End Plate
TD-015EP
TD-025EP
End Clamp TE-002, TE-002H, TA-002H, TF-ECH, TS-0021
DIN Mount Rail TA-001A, TA-001S (35mm Din Rail) or TS-001 (25mm Din Rail)
Protective Cover
M-PCV-S015
Transparent Cover
M-CV-010
Paper Marker Strip
M-MKS-010 (-XXX: Length)
Mounting Rod [mm]
M-MRD-010S (-XXX: Length)
Remarks
Ex: TD-015-04P (4P assembly of TD-015)



Packaging
200pcs/box, 2,400pcs/12boxes/N.W. :15.6kgs /carton
