TC-152-A 15A 2Pin Porcelain Ceramic Terminal Block

  • Inquiry

  • Download

    • TC-152-A 15A 2 Pin Porcelain Ceramic Terminal Block



    Rated Voltage: 600V

    Rated Current: 15A

    Dimension: 21.5 x 17.6 x 14 mm (L x W x H)

    Wire Size : 2.5 mm2 / AWG 26-14

    Screw Size : M3

    Pole: 2 Pole (Pin)

    Install Type: Panel Mounted. Please see the Specification Table below:



    Commodity size measurement slightly error, for reference only, the actual size of the main object, if any changes will be notified.



Description

TC-152-A 15A 2 Pin Porcelain Ceramic Terminal Block



Gerneral Product Information
Item number: TC-152-A
Rating: 600V, 15A, 2P
Size: 21.5*17.6*14.0 mm (L*W*H)
Wire Size: 2.5 mm2 / AWG 26-14
Screw Size: M3



 Dimensions [mm]
 Item No.  Rated Current (A) Poles (P) Length (L)  Width (W) Heigth (H)
 TC-152-A  15A  2

 21.5 mm

  17.6 mm 14.0 mm
 TC-153-A  15A  3

31.5 mm

  17.6 mm 14.0 mm
 TC-154-A  15A  4 45.1 mm  17.6 mm 14.0 mm
 TC-202-A  20A  2  21.6 mm  18.2 mm  15.6 mm
 TC-302-A  30A  2  22.3 mm  19.9 mm  17.9 mm
 TC-502-A  50A  2  23.5 mm  22.1 mm  19.0mm
 TC-652-A  65A  2  32.9 mm  29.2 mm  22.0mm





Product Photo

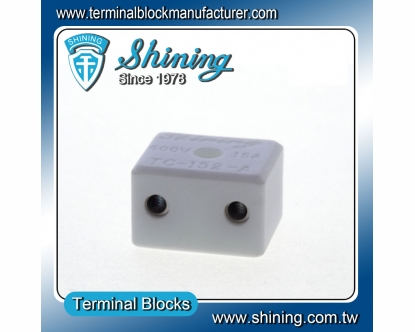

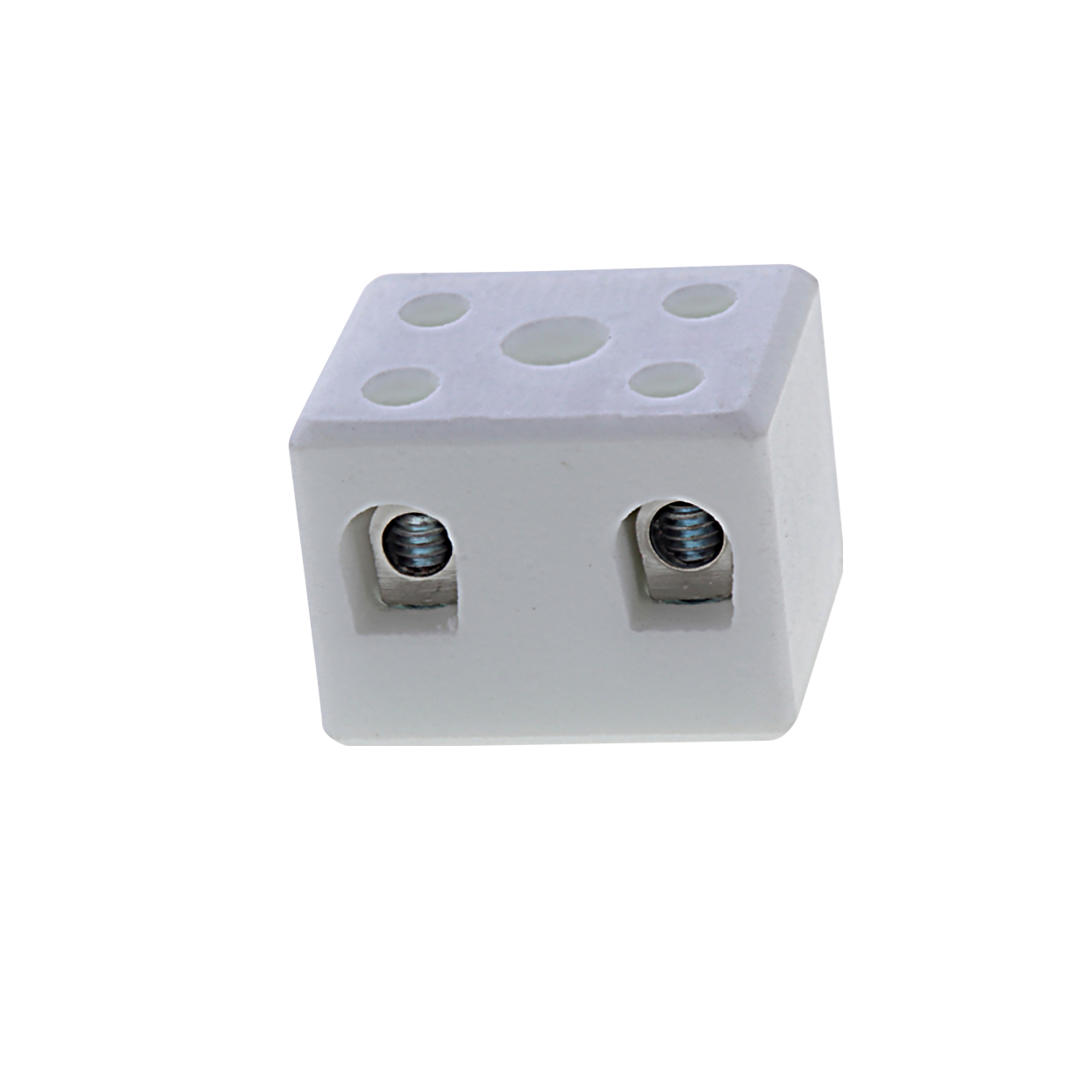

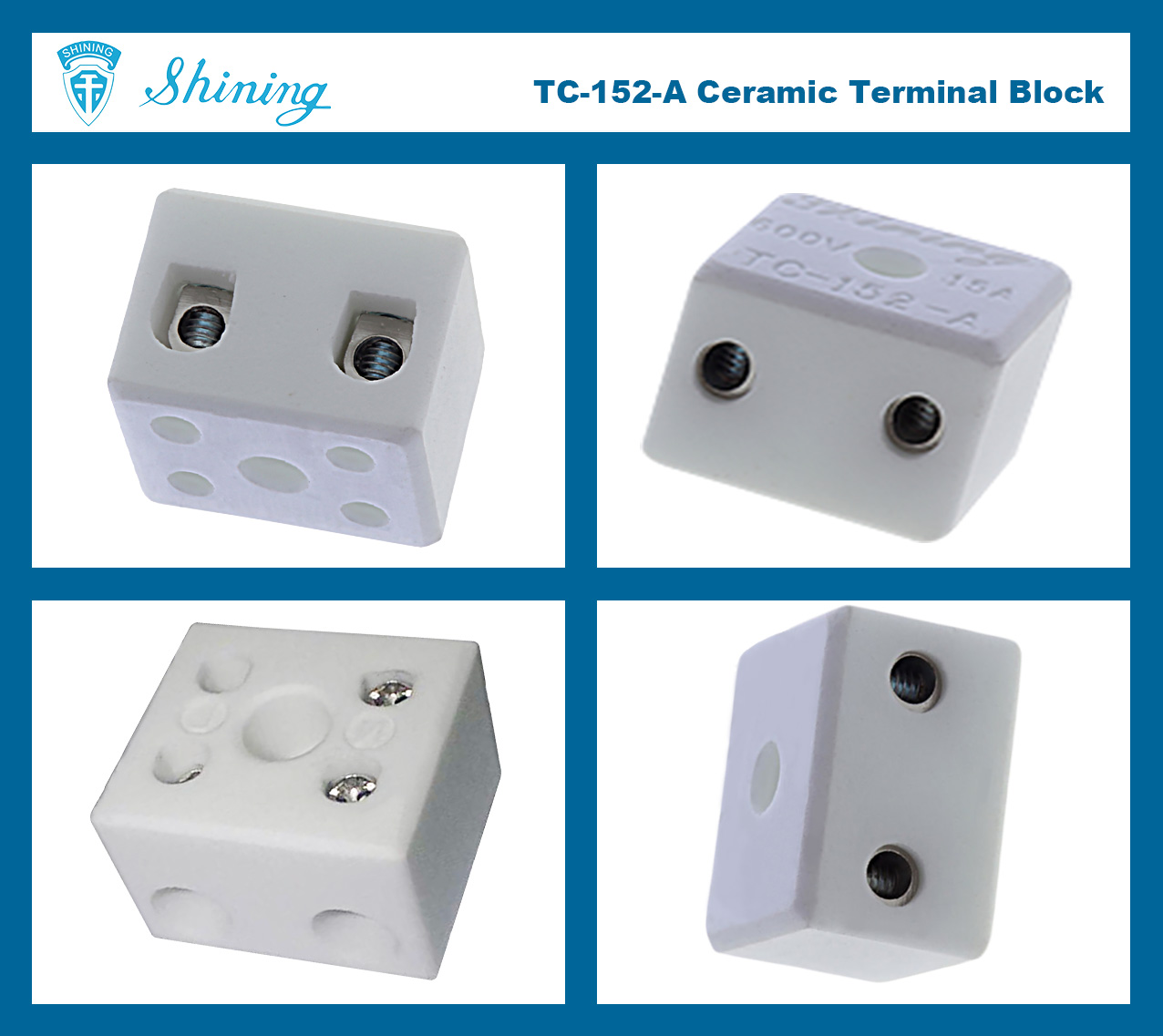

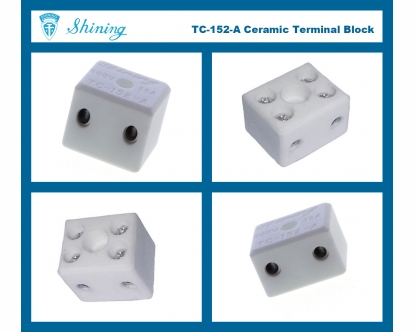

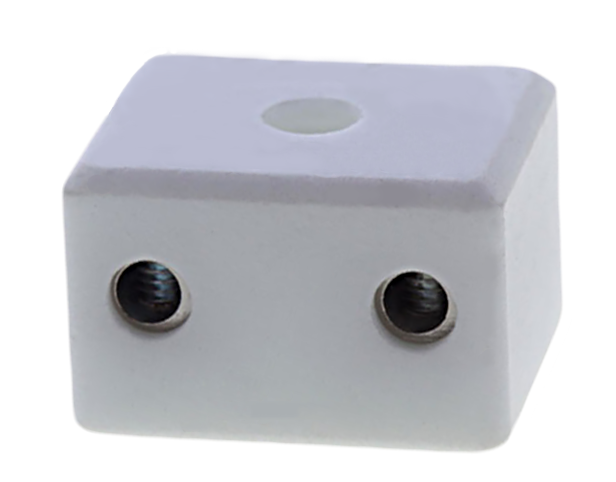

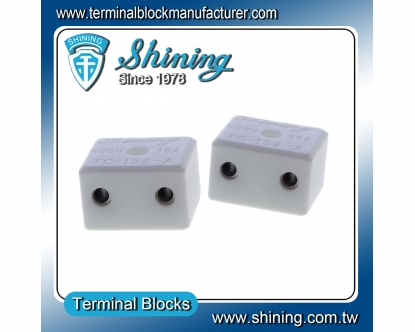

TC-152-A 15A 2Pin Porcelain Ceramic Terminal Block



Item No. TC-152-A TC-202-A TC-302-A TC-502-A TC-652-A
Pictures

Dimensions L x W x H [mm]

 21.5 x 17.6 x 14.0 21.6 x 18.2 x 15.6 22.3 x 19.9 x 17.9 34.5 x 22.1 x 19.0 32.9 x 29.2 x 22.0
Pitch [mm] 12.8 12.4 12.6 13.5 17.8
Rated Voltage [V] 600 V 600 V 600 V 600 V 600 V
Rated Current [A] 15 A 20 A 30 A 50 A 65 A
Poles [P] 2 2 2 2 2
Wire Size [AWG] # 26-14 AWG # 26-12 AWG # 22-10 AWG # 18-8 AWG # 14-6 AWG
Wire Size [mm2] 2.5 mm2 4.0 mm2 9.0 mm2 10.0 mm2 16 mm2
Base Material Ceramic Ceramic Ceramic Ceramic Ceramic
Rated Temperature 250 °C 250 °C 250 °C 250 °C 250 °C
Color White White White White White
Screw M3 M3 M3 M3.5 M4

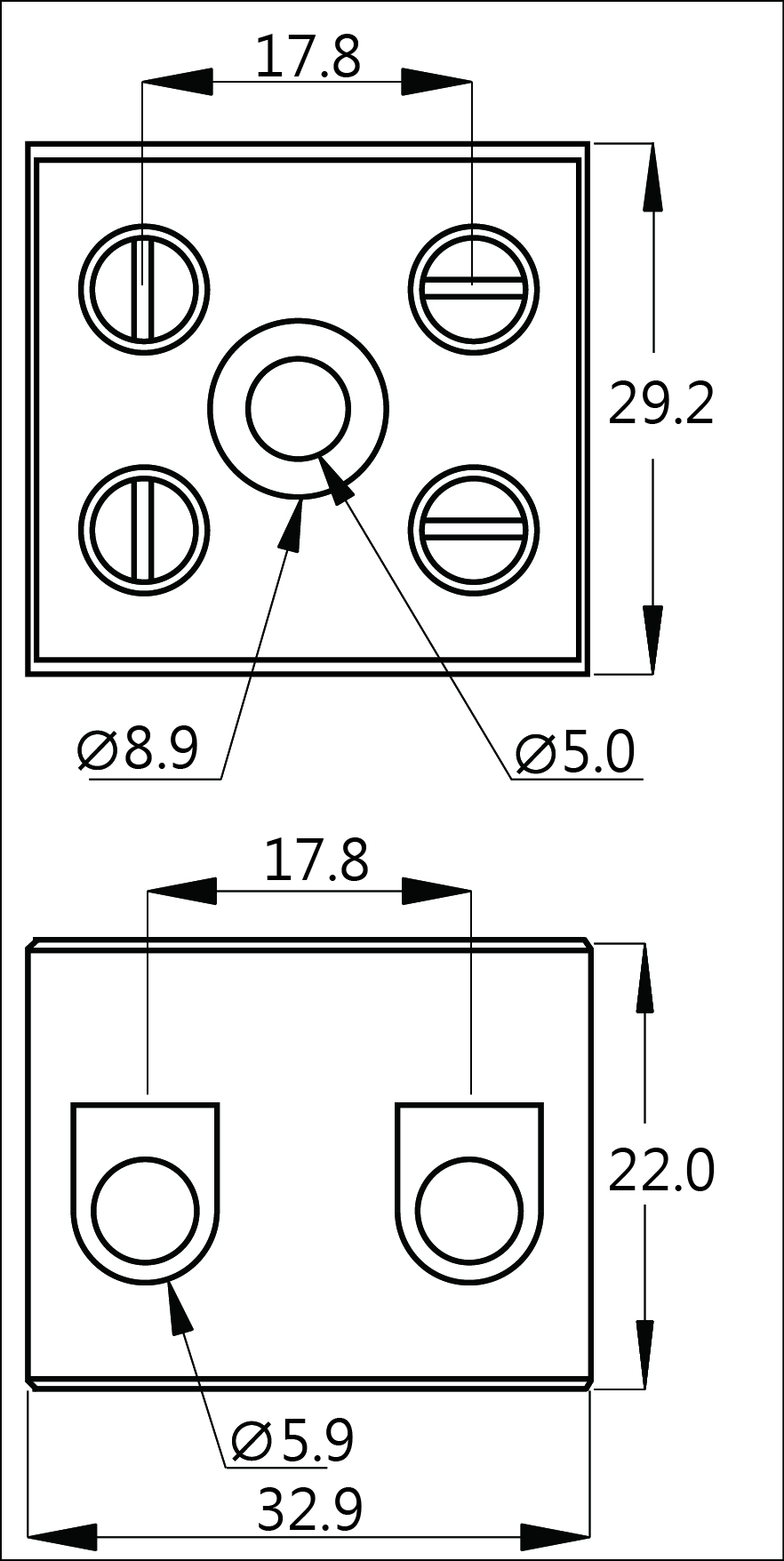

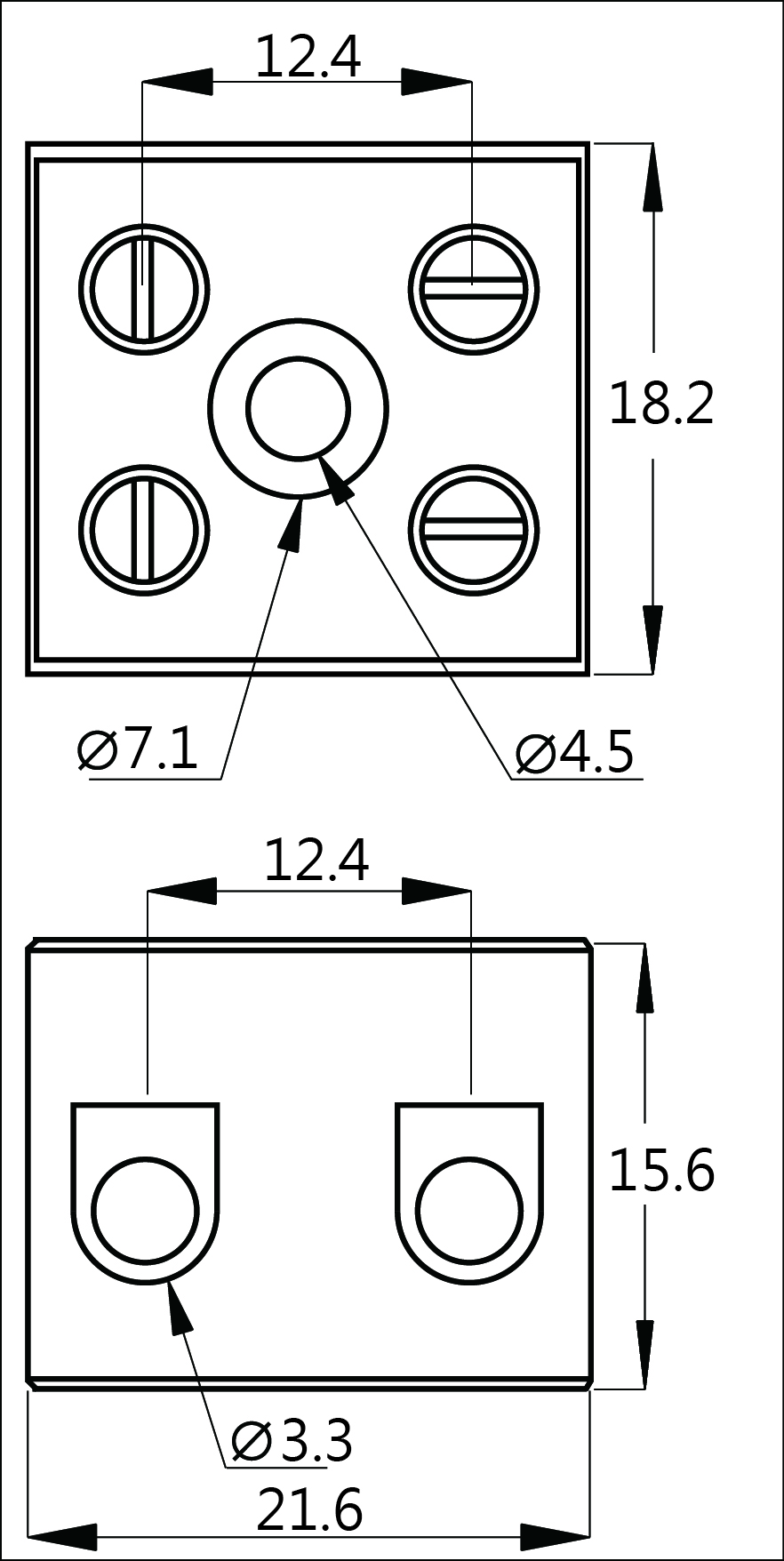

Drawing TC-152-A drawing TC-202-A drawing TC-302-A drawing TC-502-A drawing TC-652-A drawing





Commodity size measurement slightly error, for reference only, the actual size of the main object, if any changes will be notified.
