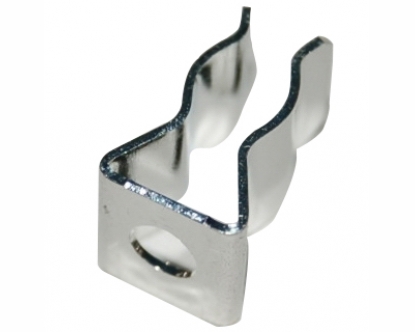

FC-4063BT-NH Fuse Clip
- Inquiry
Material: 0.4mm thick Spring Brass with bright Tin plating.
For 6.35mm (1/4") diameter fuse use. 10A, 250V rating.
Description
|
FC-4063BT-NH Fuse Clip
|
| Gerneral Product Information | |
| Item number: | FC-4063BT-NH |
| Dimension (L / W / H) (mm): | 7.9 / 7.6 / 12.2 |
| Rated Voltage (V): | 250 V |
| Rated Current (A): | 10 A |
| Thickness (mm): | 0.4 |
| Hole (diameter) (mm): | 3.3 |
| Fuse Size (diameter) (mm): | 6.35mm (1/4") (1AG, 3AG, 7AG, 8AG) |
| Material: | Spring Brass |
| Plating: | Bright Tin |
| Wiring and Mounting Type: | Mounting Hole Only |
| Certificate: | RoHS |
|
Part Number |
FC-4063BT-NH
|
FC-4063BT-NP1
|
FC-4063BT-EH
|
FC-4063BT-EP1
|
| Picture |   |
  |
  |
  |
| Thickness | 0.4mm (0.016") | |||
| Fuse Size (diameter) | 6.35mm (1/4") (1AG, 3AG, 7AG, 8AG) |
|||
| Material | Spring Brass | |||
| Plating | Bright Tin | |||
| End Stop | No end stop | Ear type end stop | ||
| Wiring and Mounting Type | mounting hole only | straight press PC legs | mounting hole only | straight press PC legs |
| Rating Current | 10A | |||
| Rating Voltage | 250V | |||
|
