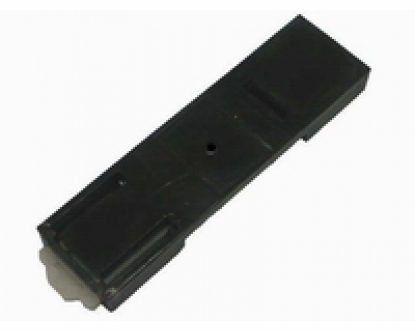

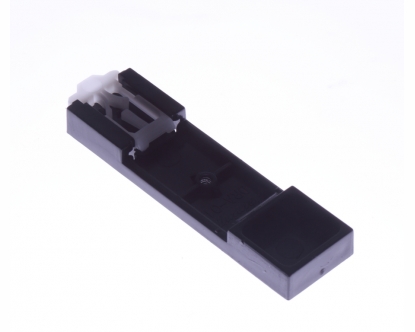

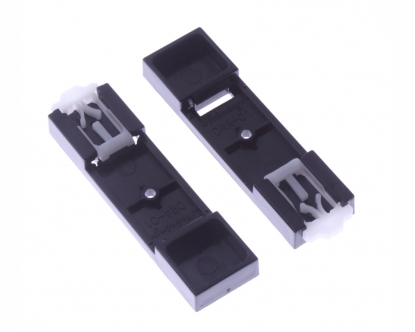

DRA-1 ABS UL 94HB Fuse Block DIN Rail Adapter
- Inquiry
suitable for FB-M031PQ/ FB-M032PQ/ FB-M033PQ/ FB-M031SQ/ FB-M032SQ/ FB-M033SQ
Description
|
DRA-1 ABS UL 94HB Fuse Block DIN Rail Adapter
|
| Gerneral Product Information | |
| Item number: | DRA-1 |
| Dimension: | 80.1x21.0x7.9mm |
| Matieral: | ABS |
| Color: | Black |
| Flame Retarded: | UL 94-HB |
| Working Termperature: | 80℃ |
| Suitable For: | FB-M031PQ / FB-M031SQ |
  |
|||
| Item No.. | DRA-1 | DRA-2 | DRA-3 |
| Specifications/Dimensions Tolerance: (0.015") +/- 0.38 mm |
|||
| Length L [inch] | 3.153" (80.1 mm) | 3.153" (80.1 mm) | 3.153" (80.1 mm) |
| Ref. Length L1 [inch] | 2.972" (75.5 mm) | 2.972" (75.5 mm) | 2.972" (75.5 mm) |
| Ref. Length L2 [inch] | 1.398" (35.5 mm) | 1.398" (35.5 mm) | 1.398" (35.5 mm) |
| Height H [inch] | 0.311" ( 7.9 mm) | 0.311" ( 7.9 mm) | 0.311" ( 7.9 mm) |
| Width W [inch] | 0.827" (21.0 mm) | 1.579" (40.1 mm) | 2.346" (59.6 mm) |
| Pitch W1 [inch] | NA | 0.760" (19.3 mm) | 1.520" (38.6 mm) |
| Materials | |||
| Body Materials | ABS | ABS | ABS |
| Color | Black | Black | Black |
| UL Flame Retarded Grade | UL 94HB | UL 94HB | UL 94HB |
| Temperature [oC] | 80oC | 80oC | 80oC |
| For Fuse Blocks | FB-M031PQ FB-M031SQ |
FB-M031PQ FB-M031SQ |
FB-M031PQ FB-M031SQ |
|
Packaging
|
| 600pcs /carton, N.W. :18.0kgs /carton |
|
Shipping information
|
| 1. For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis. |
| 2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline. |
1.Material and color can be customized.
2.For modification, there will be surcharge.
3.Drawings on the websites are for reference only.
4.Our din rail adapters have gotten RoHS approval.
5.For more details you can visit: www.shining.com.tw
