SSR-S10AA 10A Single Phase Solid State Relay

  • Inquiry

    • Shining SSR-SXXAA-(H) Series Single Phase Solid State Relays.

    AC to AC

    Maximum Load Current: 10A/ 25A/ 40A

    Item No. SSR-S10AA/ SSR-S25AA/ SSR-S40AA/ SSR-S10AA-H/ SSR-S25AA-H/ SSR-S40AA-H



Description

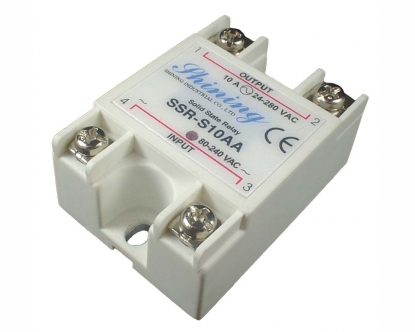

SSR-S10AA 10A Single Phase Solid State Relay



Gerneral Product Information
Item number:
SSR-S10AA
Output Load Current:
10A
Output Load Voltage Range:
24~280VAC
Operate InputCurrent:
80~240VAC
Specification: 57 x 42 x 24 mm

















Product Features

• 600V Transient Capability
• Low EMI/EFI & Surge by zero cross trigger control.
• High Isolation over than 50MΩ/500VDC
• Panel Mounting
• LED Input status Indicator
• Integrated with removable tinger-proof cover SSR-S-CV • Fast reaction, high reliability and long life
• No switching speaks, no noise, and no contact points.
• Excellent for switching control of switchboard panel, heaters, printers, machines, UPS
• UL and cUL Approval. File No. E301692. CE Compliant.



 SSR-SDA-DR  SSR-S10AA
Product Item No. SSR-S10AA SSR-S25AA SSR-S40AA
Specifications/Dimensions



L x W x H
57 x 42 x 24 mm
57 x 42 x 24 mm
57 x 42 x 24 mm
Ref.   L1 x W1
43.8 x 27 mm
43.8 x 27 mm
43.8 x 27 mm
Ref.   L2 x W2
46.3 x 12 mm
46.3 x 12 mm
46.3 x 12 mm
Ref.   Diameter (Ø)

5 mm

5 mm

5 mm
Electrical Specifications



Max. Load Current
10 A
25 A
40 A
Control Method
Zero Cross
Zero Cross
Zero Cross
Input Operating Voltage
80~240 VAC
80~240 VAC
80~240 VAC
Input Current
20mA@ 220 VAC
20mA@ 220 VAC
20mA@ 220 VAC
Must Turn Off Voltage
0~70 VAC
0~70 VAC
0~70 VAC
Output Load Voltage Range
24~280 VAC
24~280 VAC
24~280 VAC
Max. One Circle  Peak Surge
120 A
250 A
400 A
Min. Blocking Voltage
600 V
600 V
600 V
Turn On & Turn Off Time
< 1/2 AC circle
< 1/2 AC circle
< 1/2 AC circle
Isolate Impedance
50 MΩ / 500 VDC
50 MΩ / 500 VDC
50 MΩ / 500 VDC
Max. On-State Voltage Drop
1.6 V / 25°C
1.6 V / 25°C
1.6 V / 25°C
Materials

Body Materials
PBT
Color
White
Accessories & Parts

Protective Cover
SSR-S-CV (Optional)
Heat Sink
HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200)
Approval & Certificate
UL/cUL File No. E301692, CE, LVD



 SSR-SDA-DR  SSR-S10DA-H
Product Item No. SSR-S10AA-H SSR-S25AA-H SSR-S40AA-H
Specifications/Dimensions



L x W x H
57 x 42 x 24 mm
57 x 42 x 24 mm
57 x 42 x 24 mm
Ref.   L1 x W1
43.8 x 27 mm
43.8 x 27 mm
43.8 x 27 mm
Ref.   L2 x W2
46.3 x 12 mm
46.3 x 12 mm
46.3 x 12 mm
Ref.   Diameter (Ø)

5 mm

5 mm

5 mm
Electrical Specifications



Max. Load Current
10 A
25 A
40 A
Control Method
Zero Cross
Zero Cross
Zero Cross
Input Operating Voltage
80~240 VAC
80~240 VAC
80~240 VAC
Input Current
20mA@ 220 VAC
20mA@ 220 VAC
20mA@ 220 VAC
Must Turn Off Voltage
0~70 VAC
0~70 VAC
0~70 VAC
Output Load Voltage Range
90~480 VAC
90~480 VAC
90~480 VAC
Max. One Circle  Peak Surge
120 A
250 A
400 A
Min. Blocking Voltage
600 V
600 V
600 V
Turn On & Turn Off Time
< 1/2 AC circle
< 1/2 AC circle
< 1/2 AC circle
Isolate Impedance
50 MΩ / 500 VDC
50 MΩ / 500 VDC
50 MΩ / 500 VDC
Max. On-State Voltage Drop
1.6 V / 25°C
1.6 V / 25°C
1.6 V / 25°C
Materials

Body Materials
PBT
Color
White
Accessories & Parts

Protective Cover
SSR-S-CV (Optional)
Heat Sink
HS-60XXX series (HS-60050, HS-60100, HS-60150, HS-60200)
Approval & Certificate
UL/cUL File No. E301692, CE, LVD



Packaging
100pcs/ctn, N.W. :11.6kgs /carton
