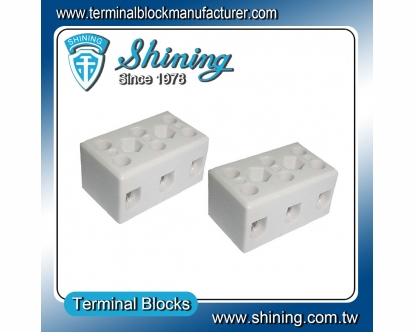

TC-503-A Porcelain Ceramic Terminal ConnectorBlock

  • Inquiry

  • Download

    • TC-503-A 50A 3Pin Porcelain Ceramic Terminal Block



    Rated Voltage: 600V

    Rated Current: 50A

    Dimension: 37.0 x 22.1 x 19.0 mm (L x W x H)

    Wire Size : 10 mm2 / AWG 18-8

    Screw Size : M3.5

    Pole: 3 Pole (Pin)

    Install Type: Panel Mounted. Please see the Specification Table below:



    Commodity size measurement slightly error, for reference only, the actual size of the main object, if any changes will be notified.



Description

TC-503-A 50A 3 Pin Porcelain Ceramic Terminal Block



Gerneral Product Information
Item number: TC-503-A
Rating: 600V, 50A, 3P
Size: 37.0*22.1*19.0mm (L*W*H)
Wire Size: 10.0 mm2 / AWG 18-8
Screw Size: M3.5



 Dimensions [mm]
 Item No.  Rated Current (A) Poles (P) Length (L)  Width (W) Heigth (H)
 TC-502-A  50A  2

 23.5 mm

  22.1 mm 19.0 mm
 TC-503-A  50A  3

37.0 mm

  22.1 mm 19.0 mm
 TC-504-A  50A  4 50.5 mm  22.1 mm 19.0 mm
 TC-153-A  15A  3 31.5mm  17.6 mm  14.0 mm
 TC-203-A  20A  3 32.8 mm  18.2 mm  15.6 mm
 TC-303-A  30A  3  34.9 mm  19.9 mm  17.9 mm
 TC-653-A  65A  3  50.7 mm  29.2 mm  22.0mm

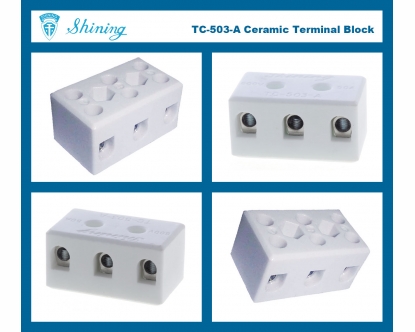

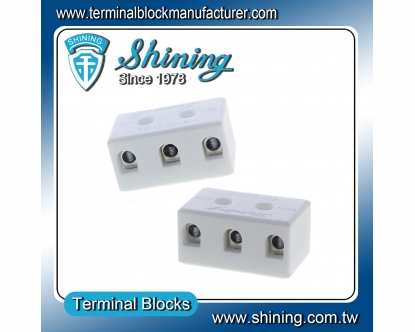

Product Photo

TC-503-A 50A 3Pin Porcelain Ceramic Terminal Block







Item No. TC-153-A TC-203-A TC-303-A TC-503-A TC-653-A
Pictures

Dimensions L x W x H [mm]

 31.5 x 17.6 x 14.0 32.8 x 18.2 x 15.6 34.9 x 19.9 x 17.9 37.0 x 22.1 x 19.0 50.7 x 29.2 x 22.0
Pitch [mm] 12.8 12.4 12.6 13.5 17.8
Rated Voltage [V] 600 V 600 V 600 V 600 V 600 V
Rated Current [A] 15 A 20 A 30 A 50 A 65 A
Poles [P] 3 3 3 3 3
Wire Size [AWG] # 26-14 AWG # 26-12 AWG # 22-10 AWG # 18-8 AWG # 14-6 AWG
Wire Size [mm2] 2.5 mm2 4.0 mm2 9.0 mm2 10.0 mm2 16 mm2
Base Material Ceramic Ceramic Ceramic Ceramic Ceramic
Rated Temperature 250 °C 250 °C 250 °C 250 °C 250 °C
Color White White White White White
Screw M3 M3 M3 M3.5 M4
Drawing TC-153-A drawing TC-203-A drawing TC-303-A drawing TC-503-A drawing TC-653-A drawing
